360° View
OVERVIEW

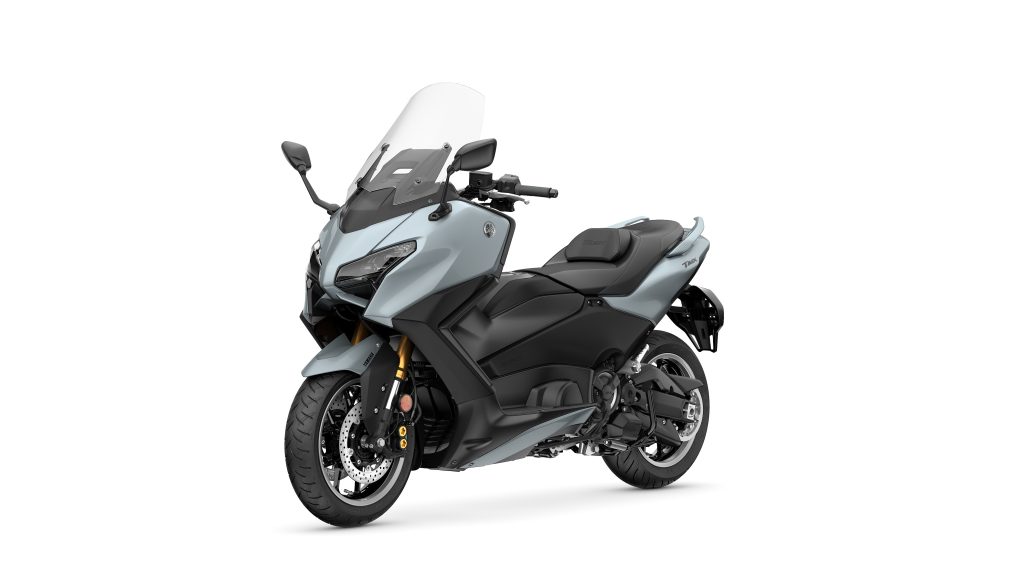

Supported by vast styling and luxurious level of comfort, the TMAX commands a dynamic presence while cruising on the busy city streets or long distance travelling. Equipped in an All-New 562cc engine accompanied by its lightweight chassis for smoother navigation, this sport scooter truly is Luxury in Motion.
Colors Available :
FEATURES

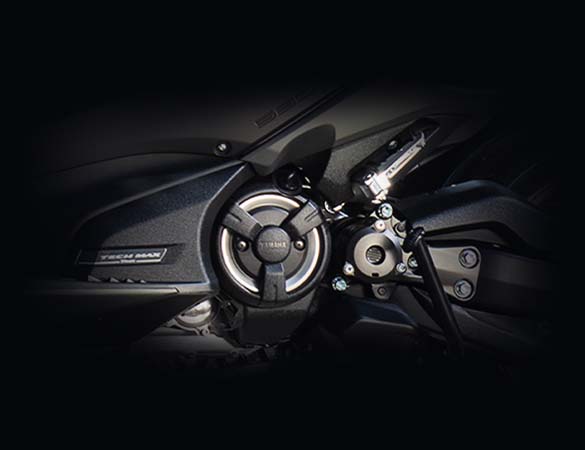

POWERFUL 562CC ENGINE
WITH EURO5 COMPLIANT
The TMAX 560 harnesses the power of the 562cc, 2-cylinder engine to produce breathtaking torque and acceleration. Along with Yamaha Chip Controlled Throttle (YCC-T) system, it can give a smooth and controlled power delivery for such a high revving, high performance engine.
PERFECTLY REFINED
EXHAUST NOTE

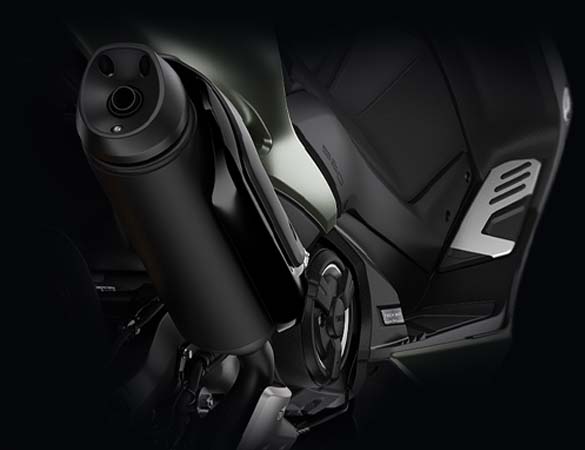

The sound produced by the engine is tuned to match low-frequency sounds, making for a powertrain with a high-quality sound that is un-muddled, alluring and satisfying.

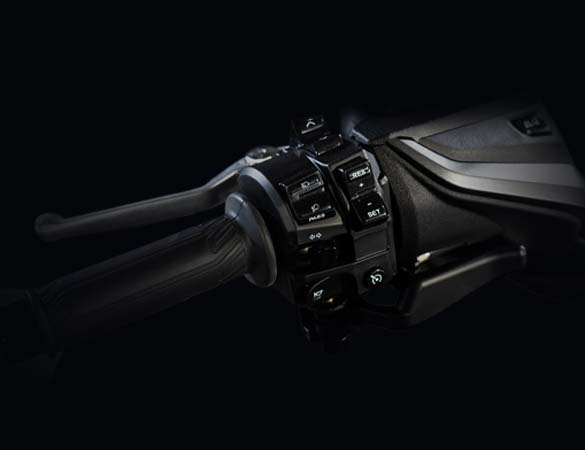

CRUISE CONTROL
FOR COMFORT
Considerably equip for long distance riding-and for added comfort and enjoyment, the Cruise Control system enhances the touring experience.

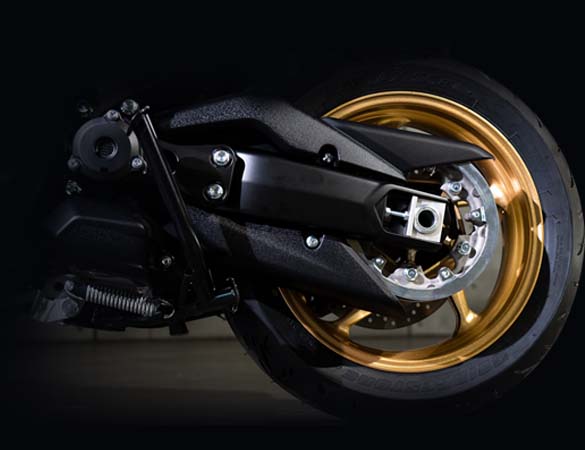

ADVANCED TRACTION
CONTROL SYSTEM & D-MODE
The TMAX 560 is fully equipped with the most advanced electronics to give you the ultimate level of controllability. The Traction Control System helps prevent wheel slip while the 2-level D-MODE gives you the option of switching to smooth power delivery around town or more powerful and sporty performance on the open road.
MONOTONE TFT
INSTRUMENT PANEL
The TMAX 560 equipped with a high-quality monochrome TFT multi-function instrument panel which incorporate a speedometer on the left and a tachometer on the right – while the central displays various indicators including fuel consumption, D-MODE, ABS and TCS.
REDEFINED REAR
NEW DESIGN

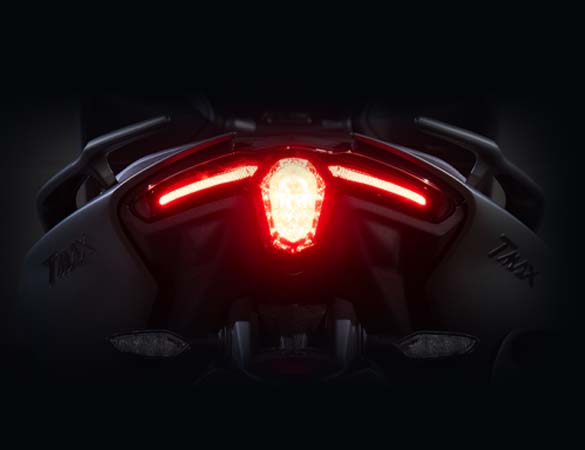

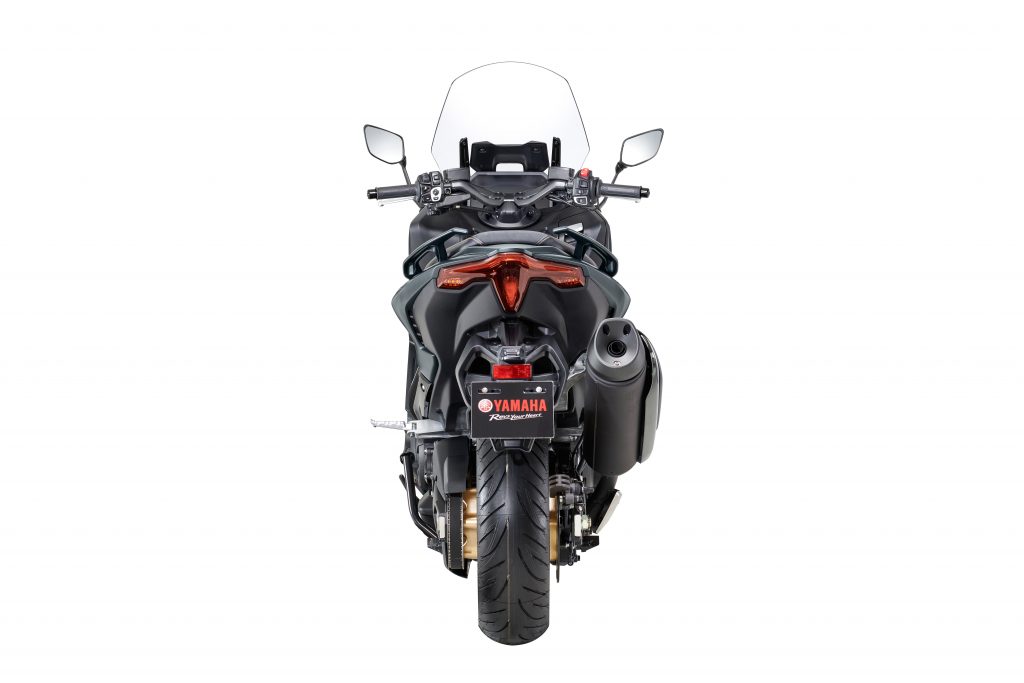

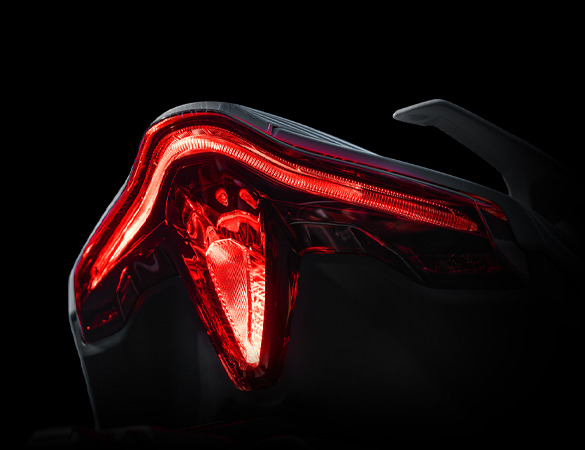

The All-New rear-view design of the TMAX 560 is further compliment by a uniquely designed T-shaped rear light which uses LED light guides for a more distinctive look.
EXQUISITE
BODY DESIGN
Equipped with a new compact LED 3-buld turn signal and a specially designed ‘boomerang’ side sections to give a more dynamic and modern appearance.

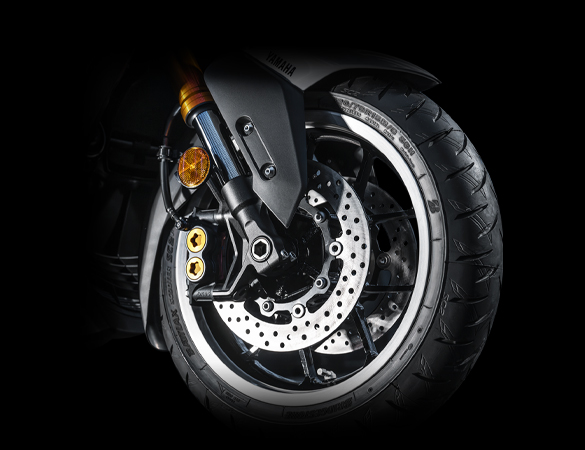

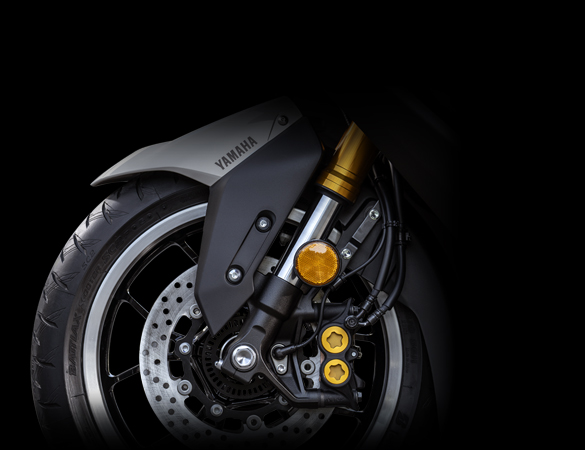

SOPHISTICATED
SUSPENSION

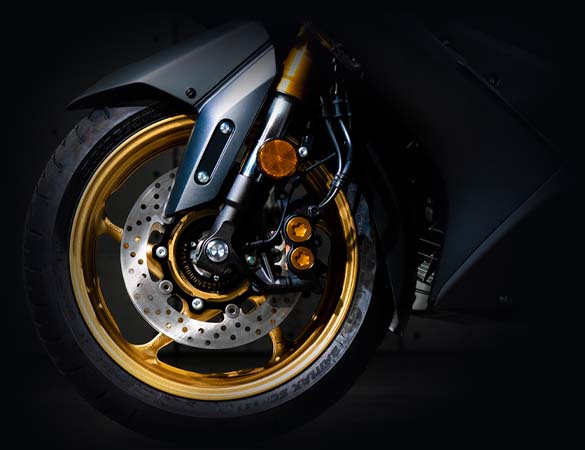

Equipped with high-specification gold-colored 41mm upside down front forks with premium black finish, this optimized suspension system with dual channel ABS provides a smoother and comfortable ride.
LIGHTWEIGHT
ALUMINIUM CHASIS
At the heart of the bike is a lightweight die-cast aluminium twin-spar frame, with optimized rigidity balance, that lets riders enjoy the full effect of the 562cc engine and CVT transmission.
ELECTRONIC ADJUSTABLE
WINDSCREEN

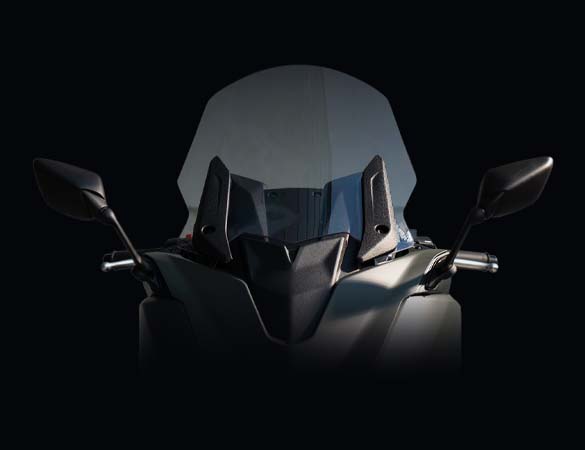

One of the most significant comfort-enhancing features is the exclusive electric screen that can be adjusted 135mm up or down, enabling riders to select the optimum setting.

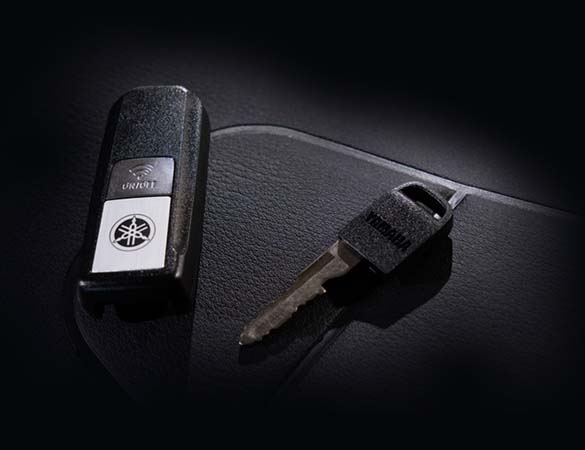

SMART KEY WITH
CENTRAL STAND LOCKING SYSTEM
Yamaha ‘Smart Key’ keyless system allows TMAX riders to start the engine, unlock seats and other compartments, as well as prevent unauthorized use of added peace of mind.

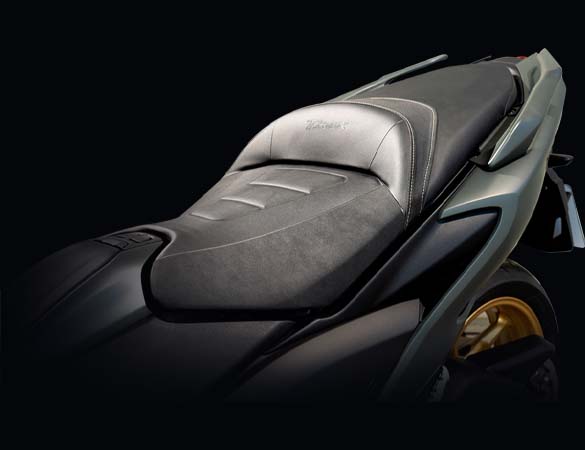

COMFORTABLE HEATED
GRIPS AND HEAT
Stay warm and comfortable on every journey whatever the weather thanks to the heated grips seat that make every ride more enjoyable.
FOR THE
JOURNEY AHEAD

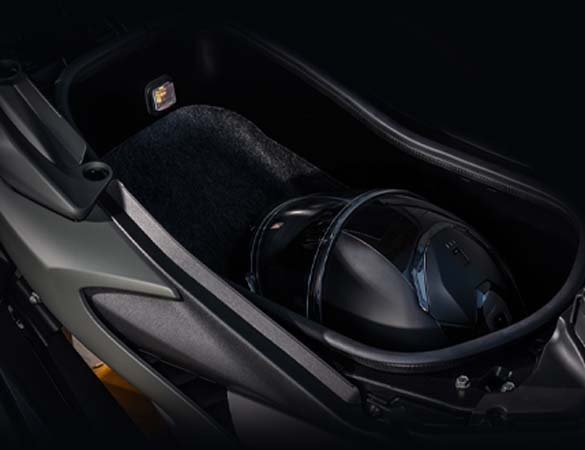

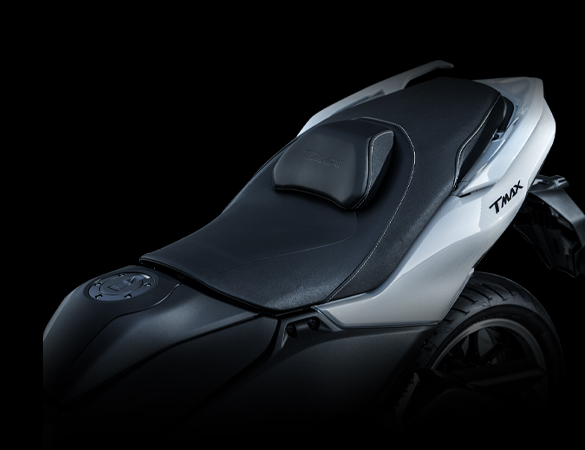

In addition to TMAX 560’s premium features are the large 15.0L fuel tank to bring you further on your journey, as well as a huge under-seat compartment space to accommodate your storage needs.

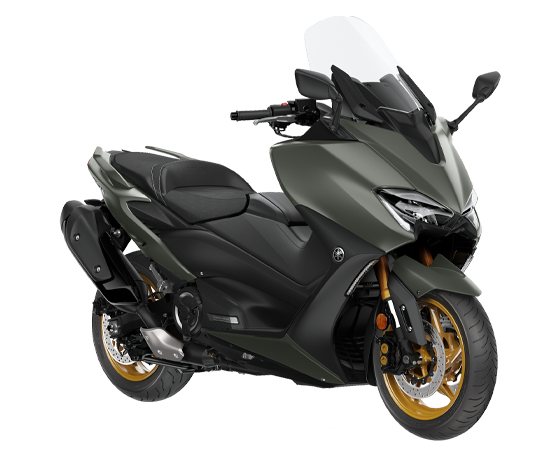

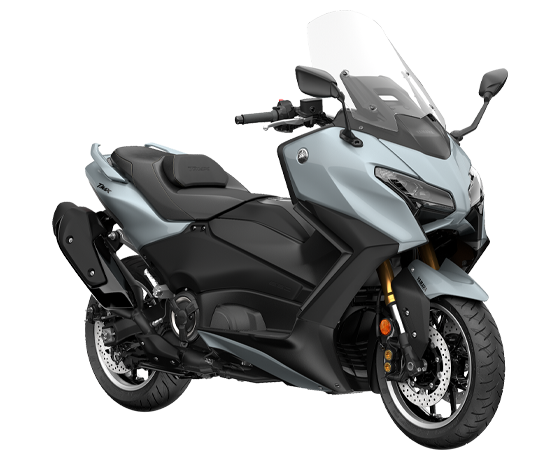

Specification
Motorcycle
Specification
Engine
| Type | Liquid-cooled, 4-stroke, DOHC, 4-valves, In-Line | |
| Cylinders | 2 Cylinder | |
| Displacement | 562 cc | |
| Bore x stroke | 70.0 mm x 73.0 mm | |
| Compression ratio | 10.9:1 | |
| Maximum power | 35.0 kW @ 7,500 rpm | |
| Maximum torque | 55.7 Nm @ 5,250 rpm | |
| Lubrication System | Dry Sump | |
| Fuel system | Fuel injection | |
| Ignition system | TCI | |
| Starter system | Electric |
Transmission
| Transmission system | V-Belt Automatic | |
Chasis
| Overall length | 2,200 mm | |
| Overall width | 765 mm | |
| Overall height | 1,420 mm | |
| Seat height | 800 mm | |
| Wheelbase | 1,575 mm | |
| Minimum Ground Clearance | 125 mm | |
| Wet weight | 220 kg | |
| Fuel tank capacity | 15.0 L | |
Brakes
| Front brake | Hydraulic dual disc brake | |
| Rear brake | Hydraulic single disc brake | |
Suspension
| Front Suspension Type | Telescopic forks | |
| Rear Suspension Type | Swingarm (link suspension) | |
Tires
| Front Tyre | 120/70R15M/C 56H Tubeless | |
| Rear Tyre | 160/60R15M/C 67H Tubeless | |
