OVERVIEW

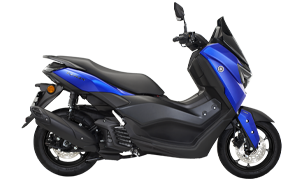

The new Yamaha NMAX is equipped with a range of exclusive features making it Yamaha’s premium and exclusive scooter in its class. A next generation scooter developed for a more prestigious and comfortable ride in the city. The NMAX is built from the MAX DNA to give the ideal balance of practically and functionality while offering elegance and comfort.

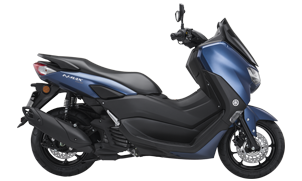

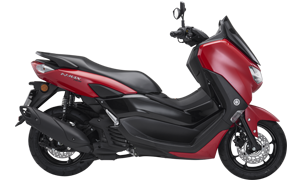

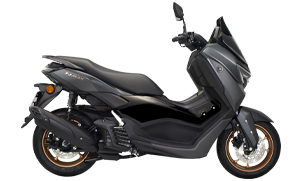

Colors Available :

Yamaha Network

FEATURES

UNDER SEAT

STORAGE

Located inside the centre tunnel, the large fuel tank combined with its fuel efficient engine allows for longer refuelling stops for daily usage.

MENU

BUTTON

Simplifies the search in the data view.

Suspensions

Twin rear suspension for better riding stability and comfort.

LED POSITION

LIGHT

The LED taillight uses 4 LED stripes on each side for a unique 3 dimensional rear view.

LIQUID COOLED 155cc VVA

FUEL INJECTION ENGINE

The refined Blue Core liquid-cooled, 4-stroke SOHC, 155cc, single cylinder, 4-valve fuel-injected engine with CVT is coupled with the Starter Generator Control Unit that provides integrated control of the Smart Motor Generator System for quiet engine starts.

Brakes

Front and rear disc brakes for optimum braking performance.

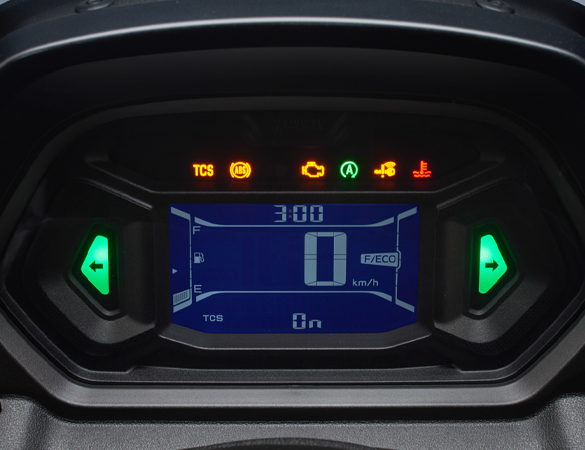

LARGE LCD

PANEL

An easy to read Full LCD meter panel with lever switch on the left handle bar to toggle through information.

12V

ELECTRIC SOCKET

In an open pocket, the power socket is within easy reach for charging a standard size hand phone.

Lights

LED headlights and rear brake lights for brighter and clearer illumination during riding.

STOP & START

SYSTEM

This system automatically shuts off the engine when machine is stopped and idling at traffic lights to reduce petrol wastage. To re-start the engine when stopped, the rider needs only to twist the throttle, causing the engine to quickly re-start and provide a smooth takeoff. The Stop & Start System can be turned on or off as desired via a switch.

Large 7.1L

FUEL TANK

Located inside the centre tunnel, the large fuel tank combined with its fuel efficient engine allows for longer refuelling stops for daily usage.

Storage

Compartment

Under seat storage capable of holding helmet. (Some helmets may not fit in depending on shape).

Engine

155cc

New liquid-cooled, Single Overhead Camhsaft (SOHC), 4-valves, 155cc BLUECORE engine with Variable Valve Actuation (VVA) and Continuous Variable Transmission (CVT).

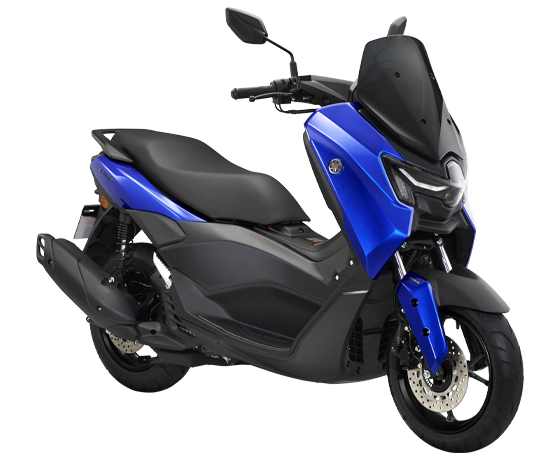

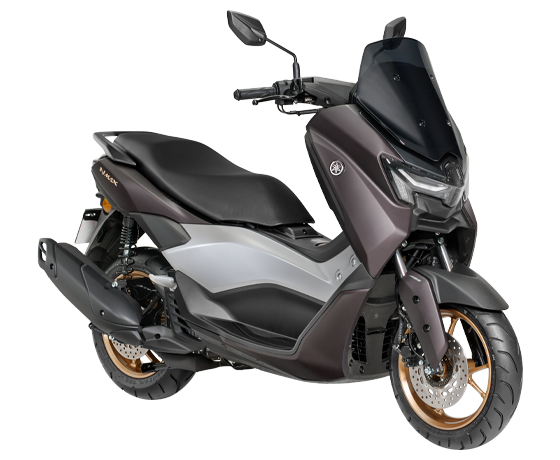

Specification

Motorcycle

Specification

null

Engine

Type Single Cylinder, Liquid-Cooled, 4-stroke, SOHC, 4-valve
Displacement 155 cm3
Bore x Stroke 58.0 mm x 58.7 mm
Compression Ratio 11.6:1
Maximum Power 11.3 kW (15.4PS)/8,000r/min
Maximum Torque 13.9N m (1.4kgf m)/6,000r/min
Lubrication System Force-Feed Lubrication, Wet Sump
Fuel Supply System Fuel-Injected
Ignition System TCI
Starting System Electric Starter
Fuel Tank Capacity 7.1L/1.9usgal/1.6lmp.gal

Transmission

Transmission system V-Belt Automatic

Chasis

Overall Length 1,935 mm
Overall Width 740 mm
Overall Height 1,160 mm
Seat Height 765 mm
Wheelbase 1,340 mm
Min. Ground Clearance 125 mm
Wet Weight 130 kg

Brakes

Front
Hydraulic Single Disc, Ø 230 mm
Rear Hydraulic Single Disc, Ø 230 mm

Suspension

Front Suspension Telescopic
Rear Suspension Unit Swing

Tires

Front 110/70-13M/C 48P Tubeless
Rear 130/70-13M/C 63P Tubeless
