Y15ZR

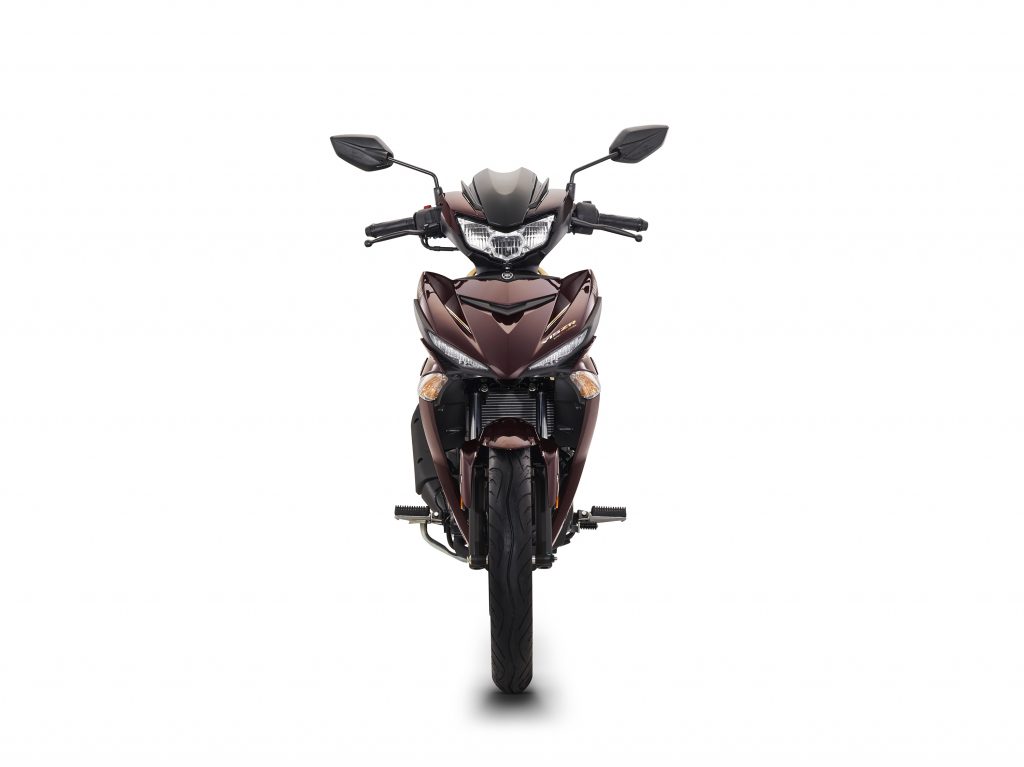

360° View

OVERVIEW

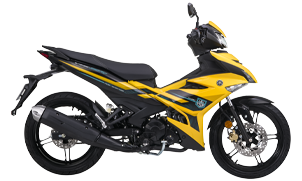

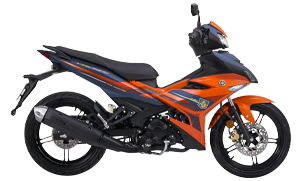

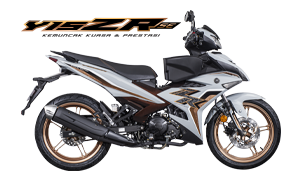

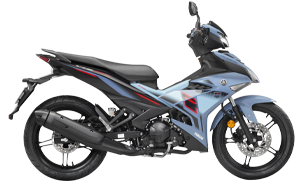

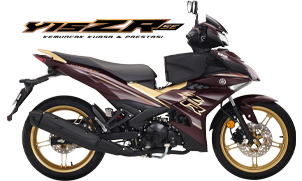

Colors Available :

Yamaha Network

FEATURES

LED

position lights

LED position lamps with 8 mentols to provide brighter lighting so that the rider can be seen from far.

LED

rear lights

LED taillights with brighter lighting when riding in the dark and during brake.

LED

rear lights

LED taillights with brighter lighting when riding in the dark and during brake.

Large

front disc

The braking system with a large-diameter front discs of 245.0 mm.

The

all-new engine

SOHC single cylinder engine, 4-stroke liquid-cooled 150 cc. 4-valve engine fuel injection with a radiator. A new power that gives acceleration from low gear ratio to the medium for optimum performance surge.

The

all-new engine

SOHC single cylinder engine, 4-stroke liquid-cooled 150 cc. 4-valve engine fuel injection with a radiator. A new power that gives acceleration from low gear ratio to the medium for optimum performance surge.

Sporty

Exhaust

3 silencers exhaust system makes the sound more impressive.

Stylish

meter panel

A multi – function meter with a combination of analog tachometer and digital speedometer with LCD display that can be programmed individually.

Stylish

meter panel

A multi – function meter with a combination of analog tachometer and digital speedometer with LCD display that can be programmed individually.

Signal

lights

Lights are designed to provide brighter and clearer lighting for better and safety ride.

Wider

rear tires

The rear wheels of die-cast lightweight design in 3.5 inch wide with the rear wheel 120 / 70-17 is wider for a more robust grip.

Wider

rear tires

The rear wheels of die-cast lightweight design in 3.5 inch wide with the rear wheel 120 / 70-17 is wider for a more robust grip.

Chain

holder

The new security features that ensure the bike chain is always in place.

Style rear

fender ‘superbike’

The all-new rear fender of a modern and stylish is only available on large motorcycles.

Style rear

fender ‘superbike’

The all-new rear fender of a modern and stylish is only available on large motorcycles.

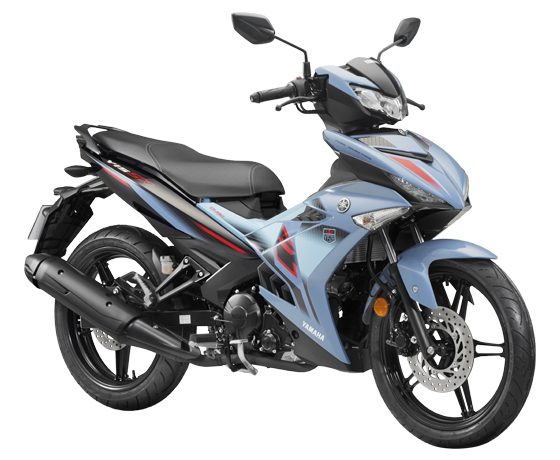

Specification

Engine

Type Liquid-cooled, 4-stroke SOHC
Cylinders Single Cylinder
Bore x Stroke 57.0 x 58.7mm
Compression Ratio 10.4 : 1
Maximum Horsepower 11.3kW (8500rpm)
Maximum Torque 13.8Nm(7000rpm)
Starting System Electric
Lubrication System Wet Sump
Engine Oil Capacity 1.15 litres
Fuel Tank Capacity 4.2 litres
Fuel System Fuel Injection
Ignition System TCI
Battery Type GTZ4V

Transmission

Transmission Type Constant Mesh, 5-Speed
Clutch Type Wet Multi, Plate

Chasis

Frame Type Backbone
Overall Length 1960mm
Overall Width 670mm
Overall Height 1080mm
Wheelbase 1290mm
Minimum Ground Clearance 135mm
Weight 115 kg

Brakes

Front and Rear Hydraulic Single Disc

Suspension

Front Suspension Type Telescopic
Rear Suspension Type Swingarm

Tires

Front Tyre 70/90-17M/C (38P)
Rear Tyre 120/70-17M/C (58P)
