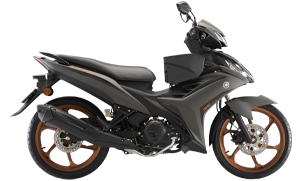

135LC Super Sport

360° View

OVERVIEW

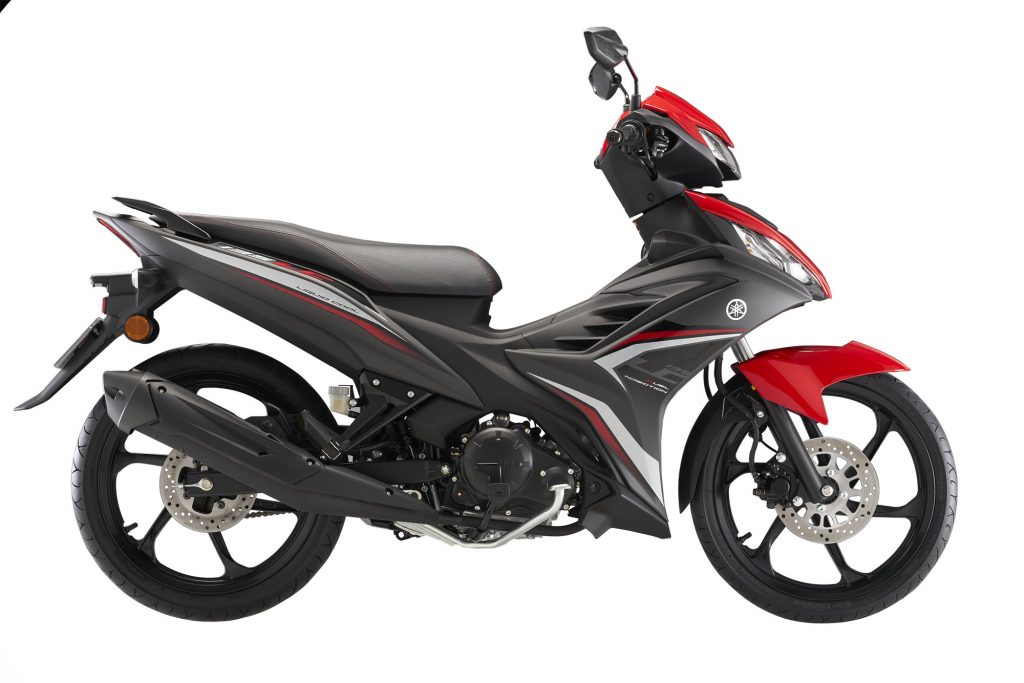

The long-awaited one has arrived. Here comes the new stylish and exciting Yamaha 135LC for the Malaysia road. Comes with excellent features to make your ride more solid and ready to conquer everything! What are you waiting for? Get your Yamaha 135LC from Yamaha authorized dealers today!

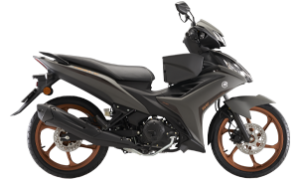

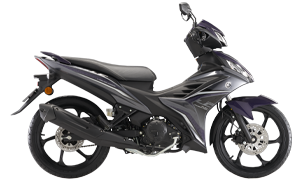

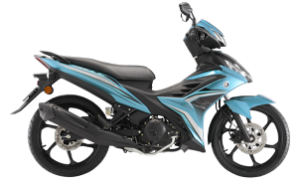

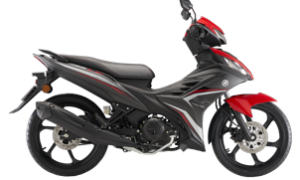

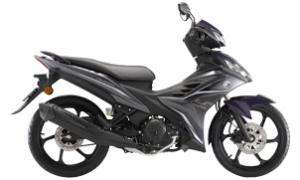

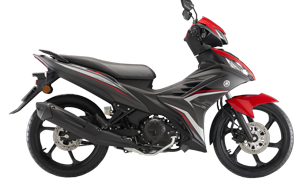

Colors Available :

Yamaha Network

FEATURES

Cover

Horn

Even steady, even aggresive! Elegant and stunning cover design produces a clearer sound!

Air

Scoop

A pair of air scoop (left and right) refines the flow of air, allowing the motorcycle to be more aerodynamic and stylish.

Front

Cover Under

The front cover under are designed to protect the engine and providing an impressive appearance.

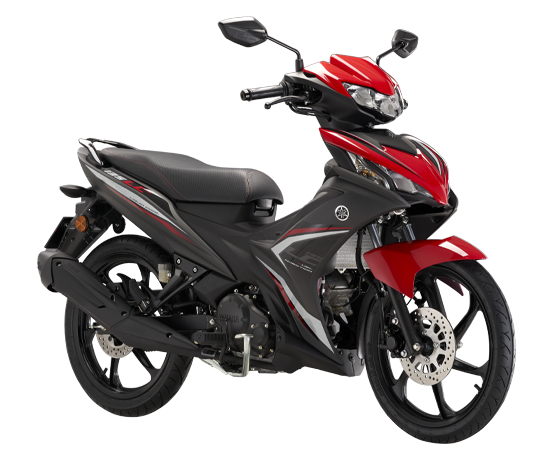

Specification

Engine

Cylinders Single Cylinder
Displacement 134 cm3
Bore x Stroke 54.0 X 58.7 mm
Compression Ratio 10.9 : 1
Maximum Horsepower 8.93kW (8,500rpm)
Maximum Torque 11.79N.m (5,500rpm)
Starting System Electric and Kick
Lubrication System Wet Sump
Engine Oil Capacity 0.9 litres
Fuel Tank Capacity 4.0 litres
Carburetor BS25 x 1
Ignition System DC – CDI
Headlight 12v, 35W/35W

Transmission

Transmission Type Rotary Type 4-Speed
Primary Reduction Ratio 2.875
Secondary Reduction Ratio 2.600
Gear Ratios 1st: 2.833; 2nd: 1.875; 3rd: 1.353; 4th: 1.045
Clutch Type Automatic Centrifugal / Constant Mesh, Wet Multi – Plate

Chasis

Frame Type Diamond
Overall Length 1,960 mm
Overall Width 695 mm
Frame Type Diamond
Seat Height 775 mm
Minimum Ground Clearance 130 mm
Dry Weight 105 kg

Brakes

Front and Rear Hydraulic Single Disc and Drum

Suspension

Front Suspension Type Telescopic
Rear Suspension Type Monocross

Tires

Front Tyre 70/90 – 17
Rear Tyre 80/90 – 17
